Sismosprink
The first software for sizing the seismic and static supports of the sprinkler and hydrant fire protection networks
Born from the precious and competent collaboration between Namirial and Hilti Italy, the SISMOSPRINK software is aimed at all the designers of fire-fighting systems and fire-fighting professionals in general, who need to guarantee the tightness of the fire-fighting systems themselves, through a correct and indispensable design of the relative anti-seismic and static brackets.

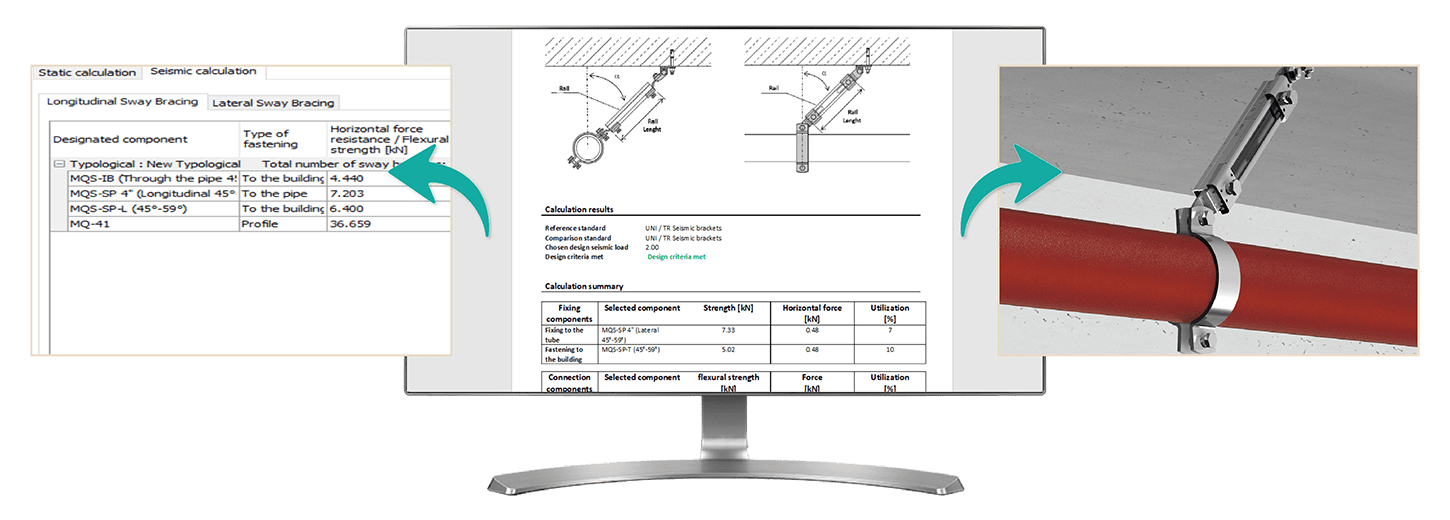

DESIGN AND SIZING
From the classification to the design of anti-seismic and static supports
Namirial SISMOSPRINK software, in fact, allows, through an intuitive and user – friendly input, to set up an advanced design of seismic and static supports for fire protection networks, both sprinklers and hydrants.

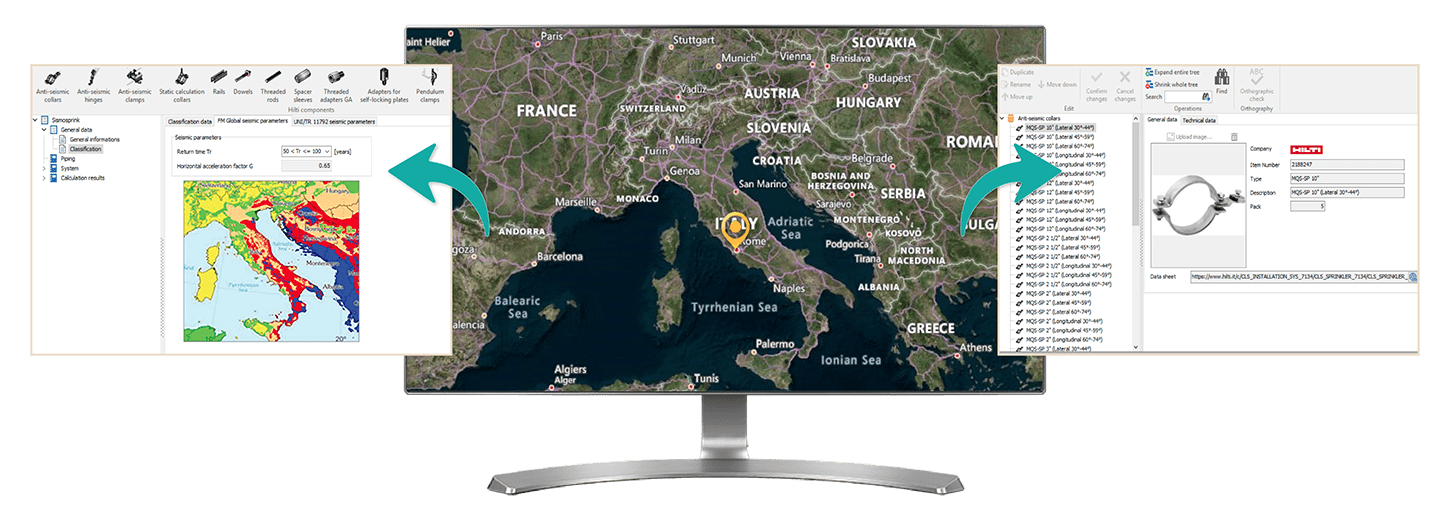

Thanks to a guided and error-proof procedure, it allows you to perform both the classification for the framework of the chosen reference standard, and the automatic identification of seismic parameters thanks to a G.I.S. (Geographical Information System) fully integrated into the software.
From the analysis and evaluation of the seismic loads of the project, all the components and related quantities necessary to create the clamping system are then identified during the calculation phase and on the basis of the project parameters entered. The components are specially and automatically selected by the software from the specially prepared archives with all certified Hilti products.
ARCHIVES
A wide range of Hilti products for a complete project
From anti-seismic and static collars, up to nuts, passing from rails, dowels and all the components necessary for the realization of the anchors suitable for the seismic and static load of the project, SISMOSPRINK takes you by hand to obtain a complete sizing of quantities and installation schemes.
Sismosprink is in the launch offer

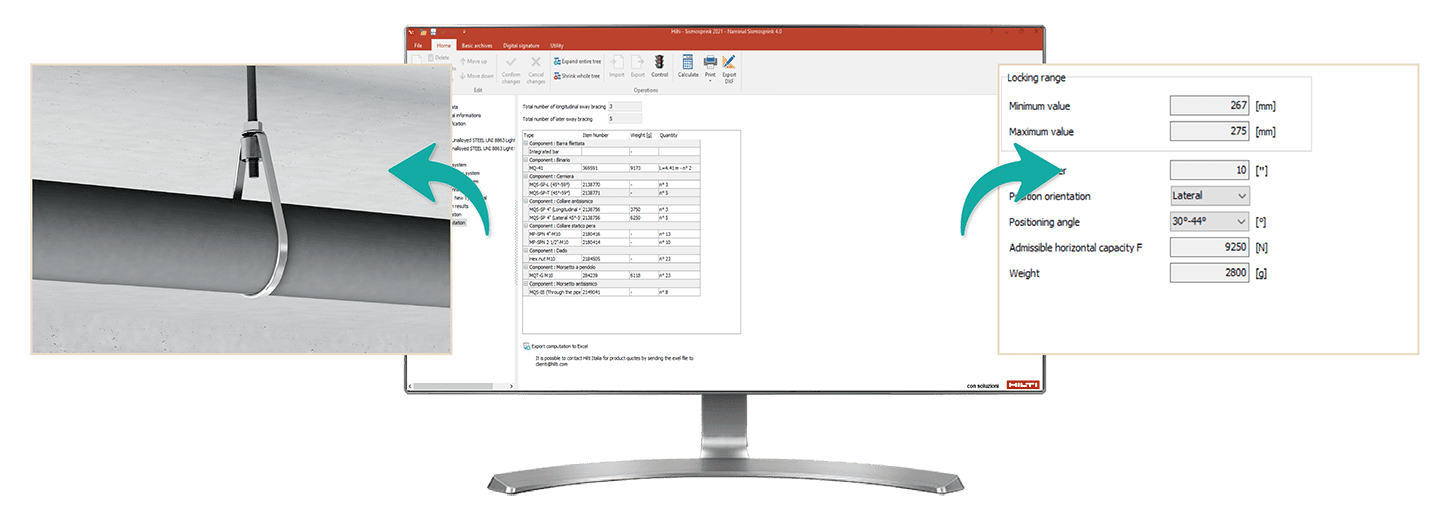

INTEGRATED PARTS CALCULATION
Report and final piece count integrated in the software
SISMOSPRINK performs a calculation according to the chosen standard and automatically defines, thanks to the archives, the main adequate components, in terms of seismic force and traction, automatically creating a detailed report with quantities, pieces, and references to the products.
The program is also able to report anomalies in the calculation of incorrect sizing and allows, in the final phase, to readjust and modify the pieces chosen automatically or, with a few simple steps, to modify the project, with the subsequent recheck of the correct sizing.
Sismosprink is in the launch offer
REPORTS AND GRAPHICS
Professional and information-rich output
Namirial SISMOSPRINK is able to generate various customizable technical reports that summarize the calculations and calculation results according to the technical standards used, both in word and pdf format.
The technical information summarizes the assembly diagrams of the designed brackets, both for the static part and for the seismic. The verification report summarizes the details of the calculations of the transversal and longitudinal braces dimensioned by providing the summary of the calculation and dimensioning criteria adopted, the calculation summary and the list of the selected components. Finally, the technical report contains an exhaustive reference to the normative references and the details of the calculation used for the chosen reference standard.
Main features
- Seismic and static classification for sprinkler and hydrant systems
- Seismic calculation according to the standards: UNI / TR 11792, FM Global, NFPA 13
- Static calculation according to the standards: UNI 12845, FM Global, NFPA 13
- Integrated GIS (Geographical Information System) for the definition of seismic parameters
- Report and calculation integrated in the software
- Material archives certified for use according to standards
- Relazioni tecniche in word e pdf
- Technical drawings in DXF
- User friendly input for immediate use of the program
- Interfacing with Namirial SPIDI
