Fire simulator software
The software enables the application of fire safety engineering principles and the simulation of fire development, spread, and effects on people, structures, and assets.
Features include FDS file integration, cloud computation, and a cutting-edge 3D viewer using Unity3D technology for immersive simulations. Enhance your fire safety engineering today!
HOW TO DEFINE FIRE SCENARIOS ACCORDING TO THE FSE
CPI win FSE is a powerful analytical tool that, through the creation of an FDS file (calculated by the NIST’s FDS), allows for the study of the “fire phenomenon,” simulating its development, spread, and effects according to the guidelines of the D.M. 9 May 2007.
RESULTS VIA DIAGRAMS, CURVES AND GRAPHS
A post-processor transforms all simulation results into easily interpretable diagrams and curves, integrating them into a report for proper F.S.E. practice.

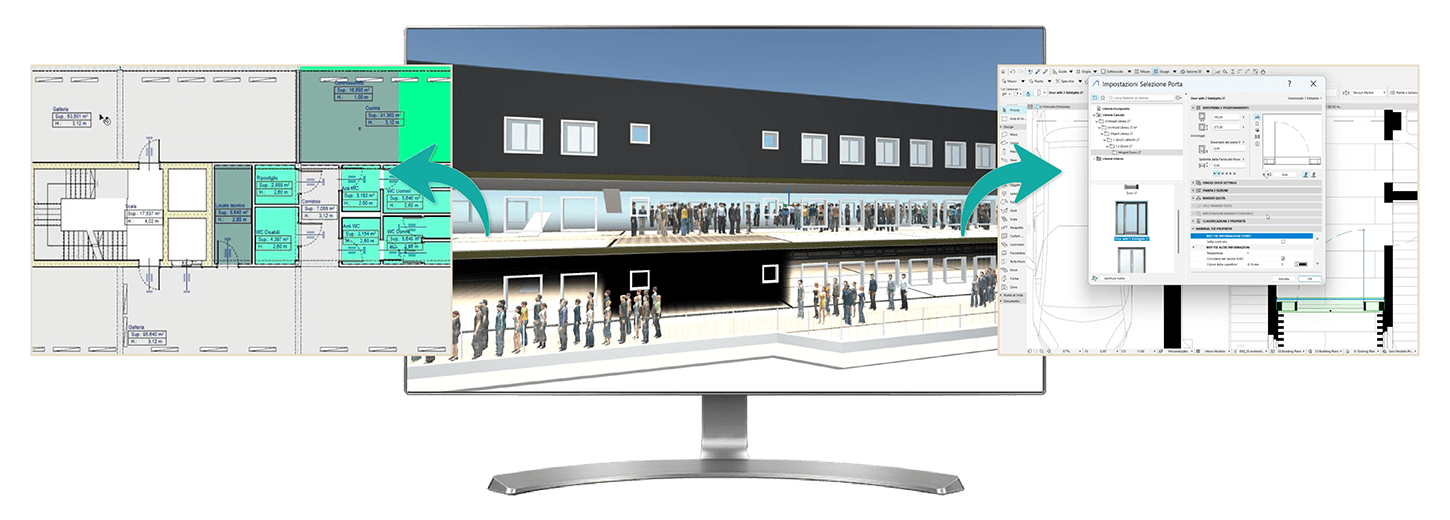

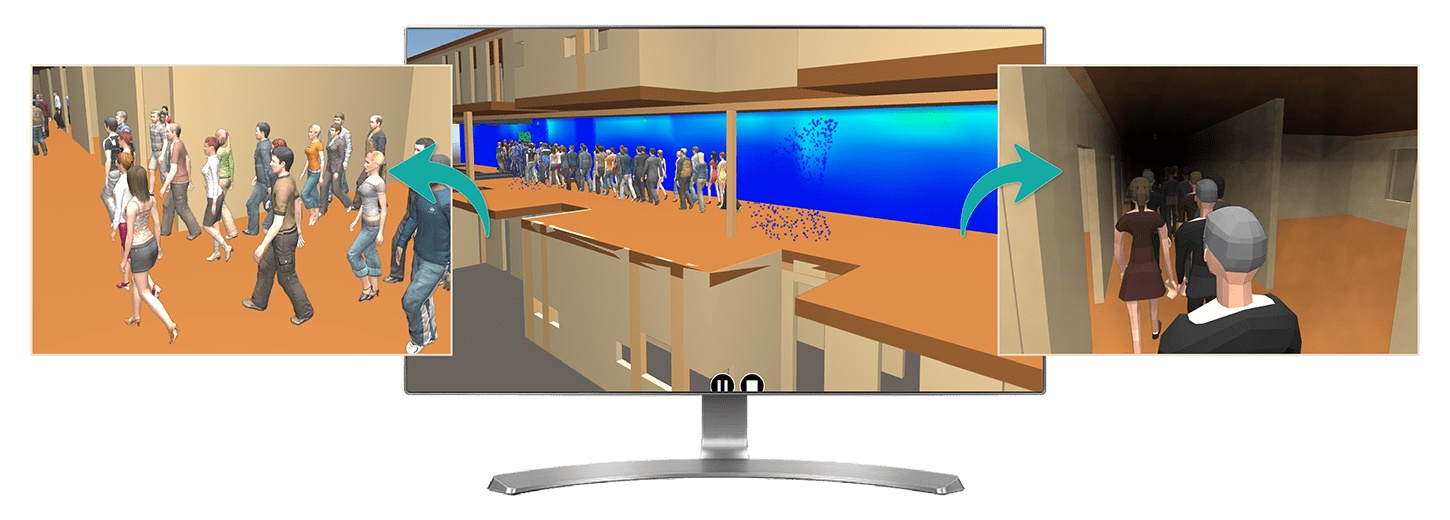

EVACUATION SIMULATIONS TO SAFE AREAS
The software allows for the study of evacuation route design and verification of the emergency plan’s accuracy. It simulates the evacuation of people from the danger zone, considering structural context, hypothetical scenarios, and individual behaviors.
TEMPERATURE CURVES FOR
RESISTANCE VERIFICATION
By setting evacuation paths and objectives, it is possible to visualize decay times compared to the set objectives and obtain time-temperature curves for fire resistance verification.
Experience fire safety simulations like never before with our new 3D viewer! Using advanced Unity3D technology, it offers stunning graphics and immersive rendering
HRR CURVE DESIGN AND JETFAN SIMULATION
Key features include an open archive for new material types, project data reading for systems created with MEP modules, risk integration in the activity process description, and creating layouts from existing FDS files. Recent additions include HRR curve design for room geometry and fire load, in compliance with D.M. 3 August 2015, and tools for smoke analysis with JetFan.
FIRE SIMULATION IN CLOUD
Fire scenario verification is enhanced with cloud computation, allowing for multiple imultaneous simulations. The program configures remote machine characteristics, launches calculations, monitors progress, and automatically downloads data upon completion.

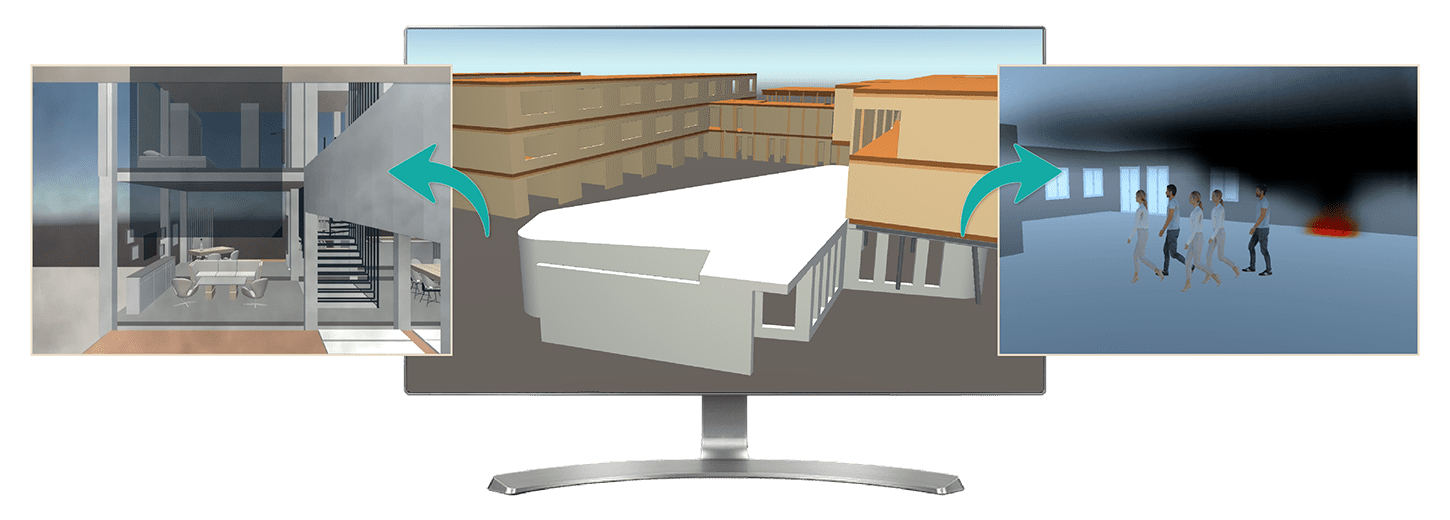

NEW 3D VIEWER
The new 3D viewer uses advanced cinematic rendering technologies (Unity3D) to
visualize calculation results for the simulation scenario through graphic animation and immersive rendering. It allows navigation of the simulation scene and calculation domain using native FDS file geometry or imported IFC models for a realistic and immersive experience.
Software modules:
CPI Win FDS
CPI win® FSE is the first European software able to apply the Fire Safety Engineering principles. It is a powerful analysis tool for studying the “phenomenon of fire”, anticipating its development, propagation and effects on people, structures and objects.Through CPI win® FSE you can simulate incidental events using mathematical models, so you will be able to study the phenomenon of fire using strategies and technics whose validity can be demonstrated and accepted.
CPI win® FSE, uses the calculation engine FDS (Fire Dynamics Simulator) version 6.x, developed by NIST (National Institute of Standards and Technology – www.nist.gov).
CPI Win EVAC
CPI win® FSE-EVAC is the ONLY software in Europe that lets you simulate and value building evacuation capacity under emergency conditions.Building Safer Structures
1. Fire Safety Exemptions When compliance cannot be achieved with the required fire safety standard, CPI win® FSE-EVAC principles allow to obtain fire protection exemptions, especially if planning, architectural, structural or production constraints exist. The program is very useful also in the event that only general prevention and protection principles can be applied.
2. Emergency fire evacuation plan CPI win® FSE-EVAC simulates people evacuation process in order to plan fire drills and practically verify the results. The evacuation of a large number of people in a short period of time can easily cause dangerous situations. CPI win® FSE-EVAC allows to verify if the emergency fire evacuation plan works properly.
Navigate realistic simulation scenes with FDS file geometry or imported IFC models. Elevate your fire safety engineering today!
Verification of Alternative Solutions Under DM 03/08/2015
FSE methods are particularly useful in obtaining fire prevention derogations, assessin “major accident” risks and fire evaluations (e.g., arson). These methods also enable the design and verification of alternative fire prevention strategies under the D.M. 03/08/2015.
Discover Namirial’s FSE software! Simulate fire development, analyze evacuation routes, verify fire resistance, and explore alternative solutions with advanced tools.
